Samll Electromagentic Slurry Mineral Processing Equipment Wet High Intensity Magnetic Separator

Brand Name : WJD

Certification : ISO9001

Place of Origin : Foshan, China

Model Number : Wet High Intensity Magnetic Separator

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month.

Delivery Time : 8 working days after receive deposit payment

Packaging Details : Standard Packing

Production Capacity : High

Brand : WJD

Type : Wet High Intensity Magnetic Separator

Application : Ceramics, slurry, shafting, mining, chemical

Place of origin : Foshan,China

Condition : New

After sales service : Engineers available to service machinery oversea

Contact Now

Small Electrimagentic Slurry Mineral processing Equipment:

Product description:

The Small Electromagentic Slurry Mineral Processing equipment has high magentic field, uniform magnetic field distribution, high gradient, remarkable effect of removing iron, small floor space, and can provide tractionable mobile slurry iron removal workstation according to customer cooling. The design scheme is convenient for heat dissipation or heat dissipation. When the equipment is continuously operated, the temprature of the coil can be controlled within the range below the temperature control line to extend the service life of the the coil, and at the same stabilize the excitation output of the coil; The magentic medium is special. Made of stainless steel, it has good corrosim resistance and magnetic properties. When the excitation coil is energized magentic coil is degaussed quickly after power failure; The semi-automatic or fully automatic system can be formulated according to the customer's production requirements.

The main technical scope:

Model	Magnetic intensity(GS)	Max.amps(A)	Max coil power(KW)	Cooling method	Diameter(MM)	Dimension(MM)	Weight(T)	Capacity(T/H)
WJD-3T89J	6000-10000	7	3	Oil&Water	89	6806801000	0.28	0.02-0.06
WJD-3T160J	6000-10000	7	3	Oil&Water	160	7807801350	0.3	0.15-0.45
WJD-5T220J	6000-10000	11	5	Oil&Water	220	100010001360	0.9	0.3-1
WJD-7T300J	6000-10000	16	7	Oil&Water	300	120012001450	1	1-3
WJD-20T430J	6000-10000	48	20	Oil&Water	430	160015002000	2	3-6

Samll Electromagentic Slurry Mineral Processing Equipment Wet High Intensity Magnetic Separator

Application scope:

In the ceramics, slurry, shafting, mining, chemical, electronics, food and other industries need to remove iron.

Product Tags:

mineral processing plant

mineral processing equipment

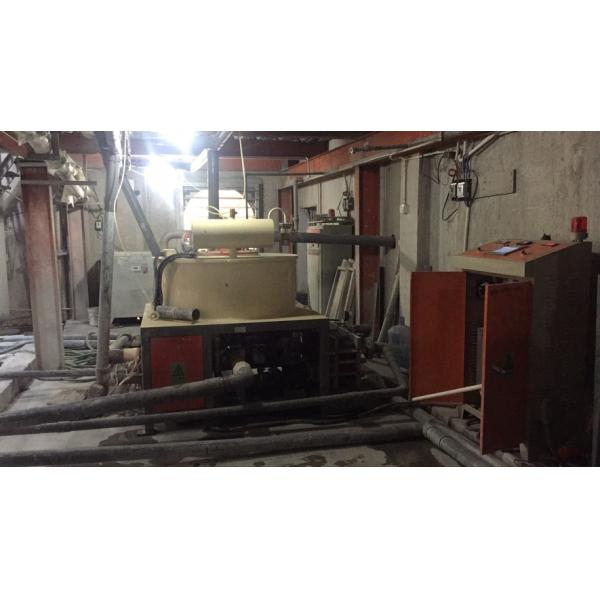

Samll Electromagentic Slurry Mineral Processing Equipment Wet High Intensity Magnetic Separator Images
